Chain Conveyors

Redler Mechanism

En Masse Drag Conveyer System

Material Handling can be convoluted. Don't Worry with Vishwa Equipments you can get all your problems sorted with Efficient standards..

Enjoy limitless unique configurations with the appropriate sizes, layouts, capacities, choices, and accessories — the decision is yours, and it's almost there. Everything is standard. We also provide alternatives for the You desire commercial-grade features, such as well as wear liners and bearings.

Exceptionally dependable performance

An estimation of major quantities of material and height is undertaken for mechanical process.

We've merged the greatest design components into a single platform. You receive the outstanding craftsmanship, commercial-grade dependability, and simple maintenance you've come to expect from decades of dependable and professional service.

Versatile Design with heavy duty bearing backed by synthetic slide plates.

Our Robust Design for long life operations with Zero speed Sensor provides full efficiency and safety.

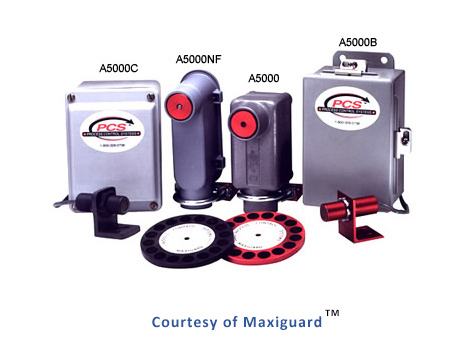

In the event of a chain stoppage, a zero-speed detector mounted on the return shaft promptly stops the conveyor. A sensor for detecting material backing in the drive unit is also offered.We simplified things to repair worn-out components without having to replace the complete conveyor body - an extra feature that could save you both time and money. Explore our conventional  abrasion-resistant bottoms, as well as optional 3/16", 1/4", and 3/8" bottoms.


Technical data
Material Composition Mild Steel Stainless Steel
Inclination Upto 40° Semi Inclined
Casing Size Upto 1000 MM
Safety Stndards Instant Response Sensor Zero Speed Switch
Length Upto 200 M
Feed Capacity Upto 1000 T/H Grains Or Mild Material
Surface Coating Powder-Coated Stainless Steel Hot-dip-Galvanized

Don't know where to start? Be relax, we are here to do assesment of area requirements.

We have the personnel and resources to assist in analysing all sorts of grain handling requirements. We are able to manufacture Grain Handling Systems that will fit your operation because to our flexibility in both design and production.

Talk to us

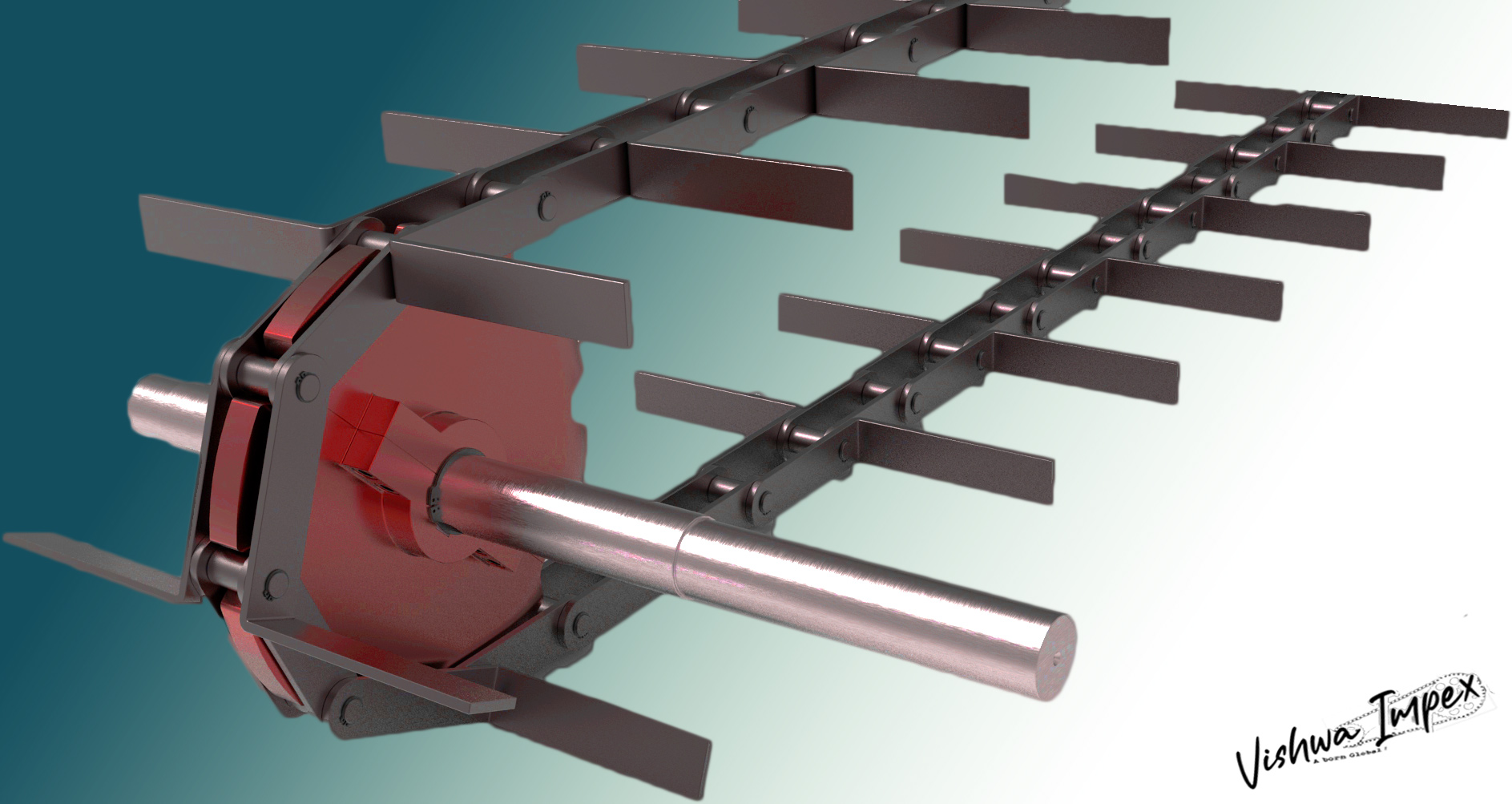

Sprocket Assembly is crucial for conveyer system. Vishwa serves BI-part wheel for easy maintenance..

Bolted segments make up the driving and return wheels. This enables for the rapid and easy exchange of parts within the conveyor. Inside the conveyor, the chain links with bolted connections may also be swapped.
