Shim Kit


Shim Kit

$ / ₹

Accurate bars adjustment in strainer cage is vital element for drainage areas. Vishwa Spacers adjusted with power press comes with angle of 25 Degrees offer a surface area to widen the gap in bars. There is no unified set of guidelines for determining the spacing in a drainage barrel. However, if not correctly configured, it might result in either too little or too much fine generation. Extruding solids from a barrel signal that spacers need to be tightened. If the oil is not draining rapidly enough, it indicates that the spacing has to be adjusted. Spacing area changes with the length of machine. The feeding zone near hopper consist of heavy Guage spacer and as more pressure is introdcued the guage is reduced simultaneously.


WHY US?
◎ Fast Delivery

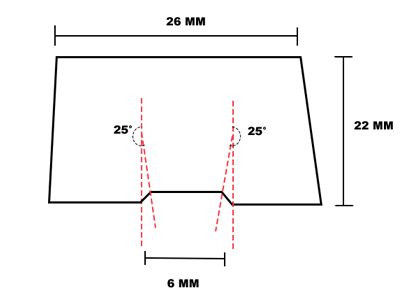

◎ 25 degree angle gives more surface area
◎ Easy to use and remove
◎ High Strength and Good Mechanization

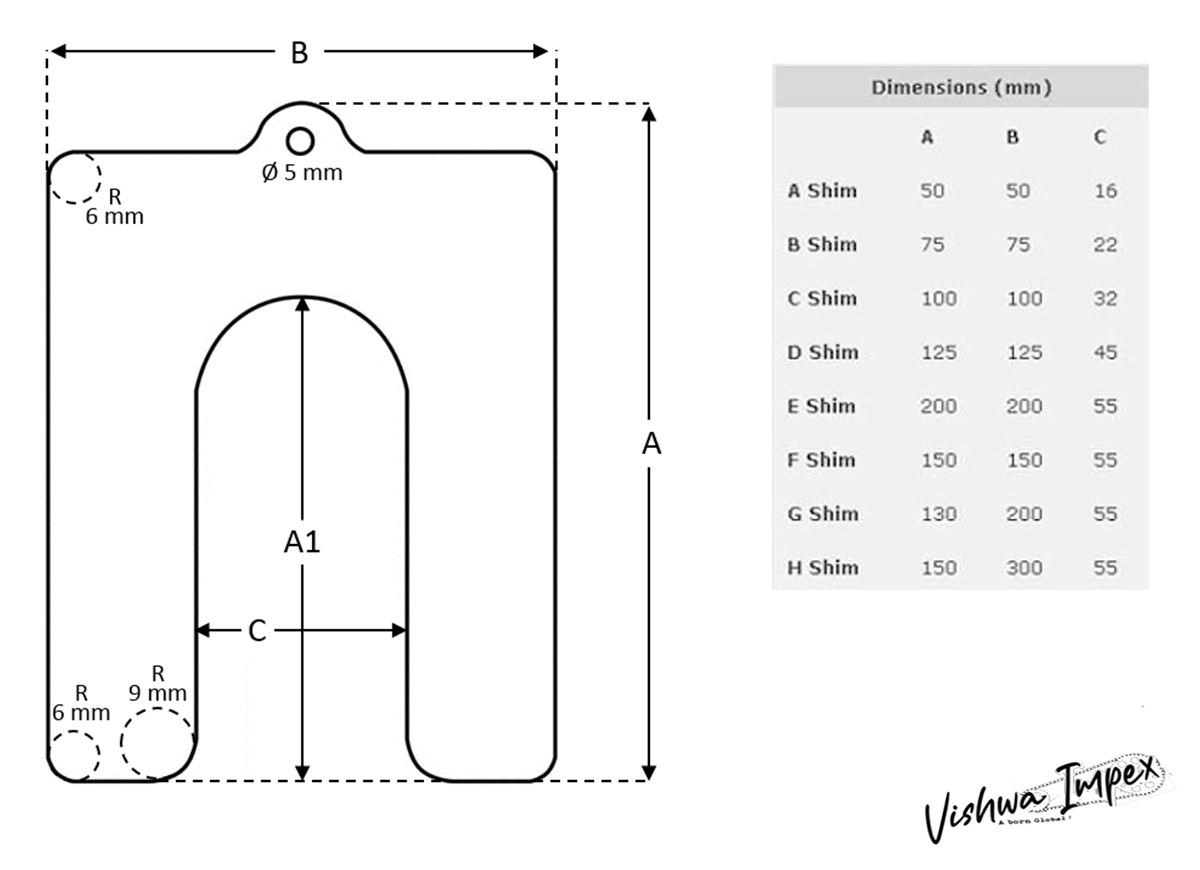

Spacers are available in different sizes and guages according to Requirements.

Available In :

• Stainless Steel 304 or 316
• Bronze
• Mild Steel
• Alloy Forged Steel / EN series
