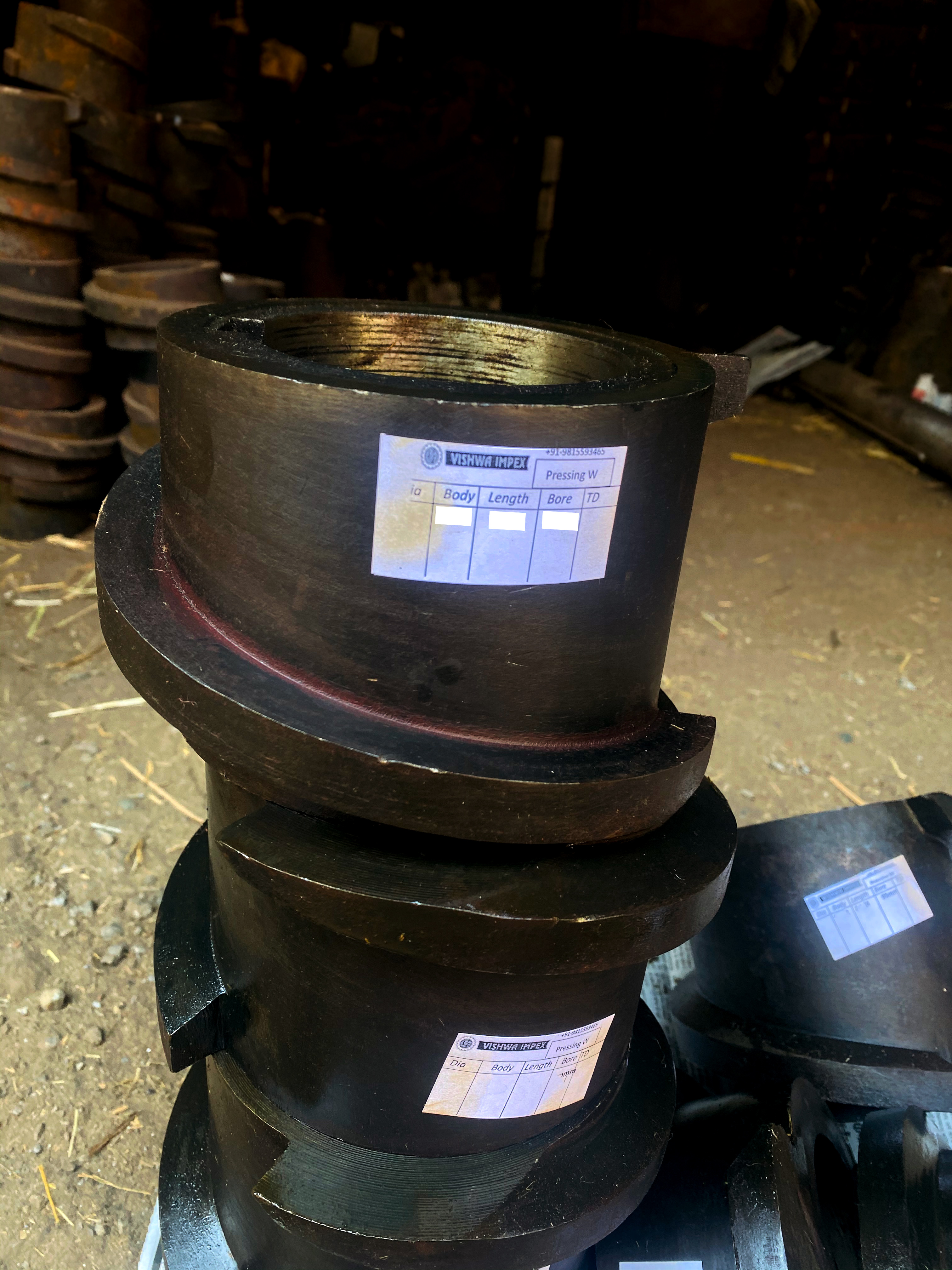

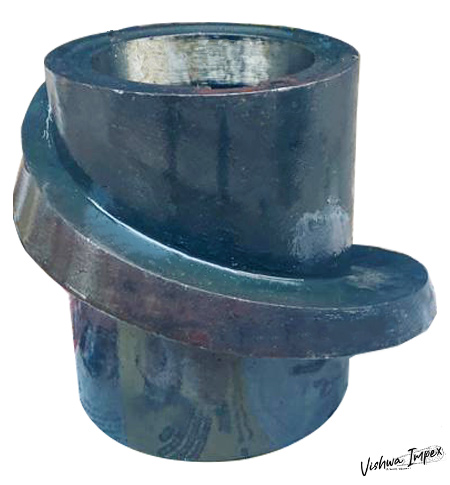

The most crucial organ of a screw press. Worm screws are installed on shaft and get locked with keyway mechanism.Thread pitch and thread depth are unique to each worm. The volume of the press chamber from the feeding hopper and discharging port is decreasing as the thread pitch of the worm shaft shortens and the thread depth shallowens. Material is erupting from the worms. With increased pressure from the press chamber, the oil may be progressively extruded out. Interrupting screw Worm designs are now used in modern presses. Worms assembly plays a huge role in oil yield and meal quality. Low quality material and insufficient heat treatment results in cracking of worm, leading to losses in profits. 18 years of experience in manufacturing worms and use of modern technology, indoubtedly vishwa screw worms are best for your presses. Vishwa screws comes with unique barcode to refrain from Counterfieting products.

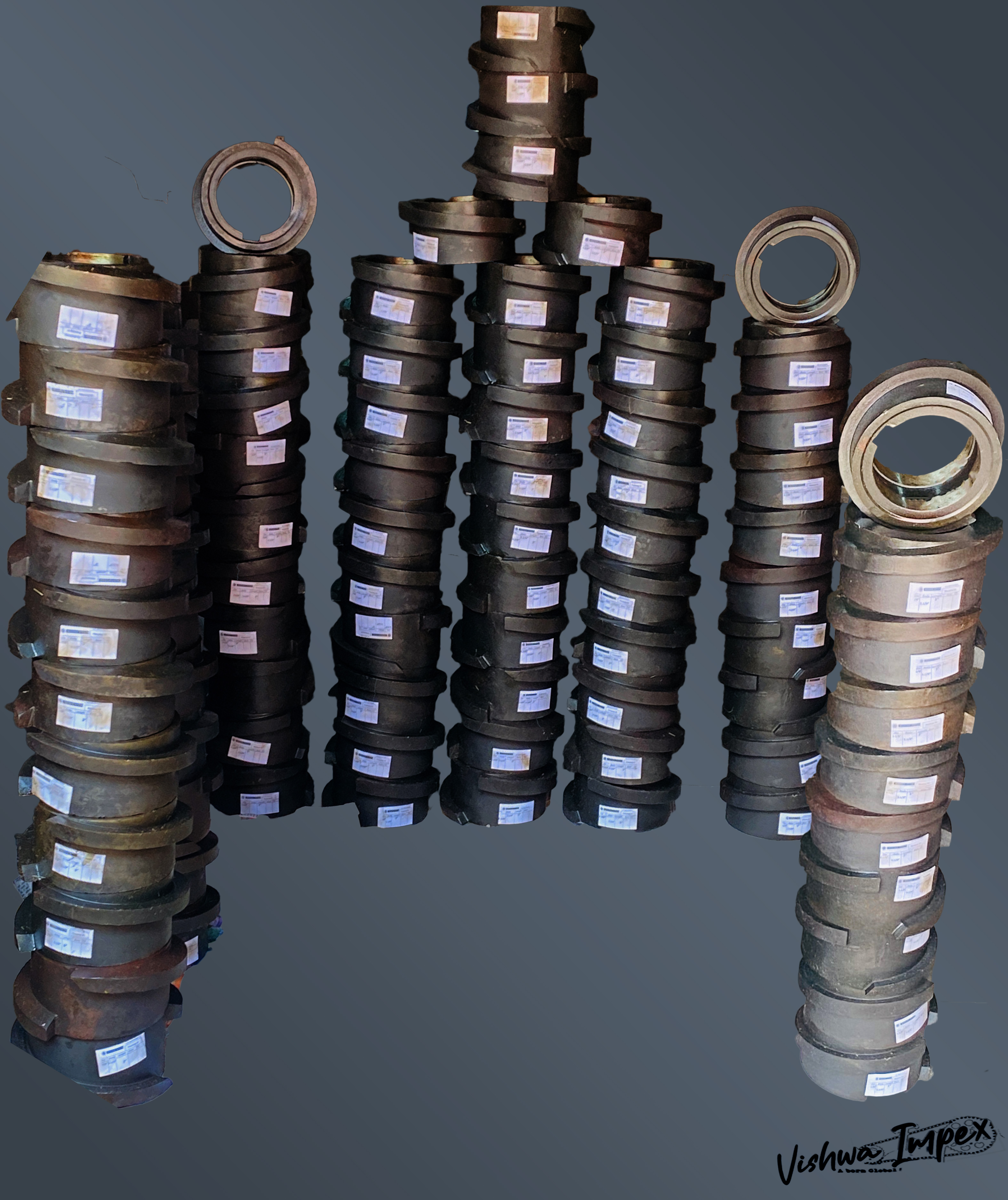

Worms are available in different sizes and Pitches. Special consideration is given to thread if required in Double or single.
Available In :
• Stainless Steel
• Hard Faced with with high content of chroium carbide. from durmat group-germany
• Mild Steel
• Alloy Forged Steel / EN series with heat treatment done in Oil.
Worms are available for Following screw Press manufacturers:
➠ Mahadev International
➠ Anderson Screw Press
➠ Muar Ban lee
➠ Vincent Corp.
➠ Desmet Bellestra Rosedown
➠ Gurusewak
➠ Guruteg
➠ Hum Machinery
➠ HF group
➠ Bronto
➠ Chillex
➠ Kumar Metals
